U filter
- sell：021-32051999
- sell：021-32050777
- fax：021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
UG filter is widely used in steam, air, water, oil and other systems pipelines, filters are to protect a variety of meters, pumps, valves, traps and other equipment.
Type UG filter has small pressure loss, large flow area and strong resistance to dirt. Sewage is convenient.
Main performance parameters
型號 | 公稱壓力 | 工作溫度(℃) | 濾網目數 | 適用介質 |
UG-A | 2.0 | 300 | 20～150 | 蒸汽、空氣、水、油 |
UG-B | 5．O | 425 | 20～150 | 蒸汽、空氣、水、油 |
UG-B型過濾器 UG-A型過濾器 | 零件名稱 | 材料 |
閥體 | 碳鋼、不銹鋼 | |
濾網蓋 | 碳鋼、不銹鋼 | |
濾芯網 | 不銹鋼 | |
墊片 | 金屬石墨 |

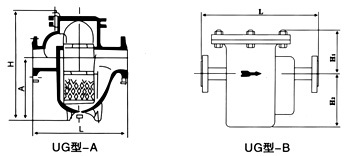

構圖.jpg)
型號 | 公稱通徑(DN) | 外形尺寸 | ||
A | L | H | ||
UG型一A | 10 | 150 | 80 | 125 |
15 | 150 | 80 | 125 | |
20 | 180 | 100 | 153 | |
25 | 180 | 100 | 153 | |
40 | 200 | 155 | 304 | |
50 | 300 | 155 | 340 | |
65 | 340 | 220 | 380 | |
80 | 400 | 250 | 420 | |
100 | 500 | 295 | 502 | |
150 | 600 | 335 | 650 | |
200 | 786 | 395 | 770 | |
UG型一B | 公稱通徑 (DN) | 外形尺寸 (mm) | ||
L | H1 | H2 | ||
15 | 270 | 90 | 145 | |
20 | 270 | 90 | 145 | |
25 | 270 | 90 | 145 | |
32 | 320 | 125 | 175 | |
40 | 320 | 125 | 175 | |
50 | 320 | 125 | 175 | |
65 | 430 | 140 | 220 | |
80 | 430 | 140 | 220 | |
100 | 430 | 140 | 220 | |
125 | 460 | 160 | 235 | |
150 | 460 | 170 | 235 | |
200 | 460 | 190 | 235 | |
The best quality, first-class service Qigao creates more value for you!
