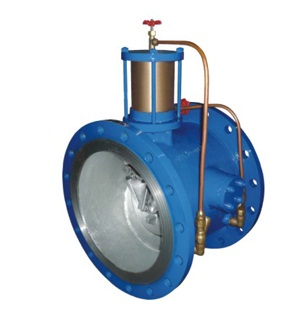

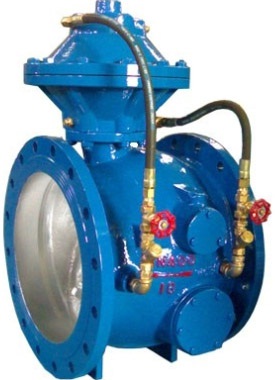

Pipe valve is the fifth generation of new product after the old manual control valve, hydraulic butterfly valve, multi-functional hydraulic valve and hydraulic automatic valve. Through the fluid design of the valve, a straight-line flow channel is formed with low energy consumption, stable operation and good sealing effect. It has the functions of electric gate valve, electric butterfly valve and check valve. By increasing the fast closing time, the harm of water hammer can be eliminated and the safety of the pump and pipe network system can be protected. Pipe force valve is mainly used in centrifugal pump, mixed flow pump and axial flow pump outlet pipe of automatic water supply and drainage pumping station. Piston type and diaphragm type control devices are designed, which can be applied to clean water, raw water medium, sewage and slurry water medium respectively. In terms of product type, the company has developed five specifications, such as ordinary type, low-pressure type of backwater, sewage type, to meet the needs of different customers under different working conditions. Because of its compact structure, small volume and light weight, it is especially suitable for large diameter pipeline system. It can be widely used in power supply, environmental protection, metallurgy, petrochemical, water department, municipal, food and other industries, drainage system, sewage pump room, chemical fluid transmission system, is the latest domestic and foreign structure, the most advanced performance, the most reliable operation of the new pump station control equipment.

Characteristic

(1) The valve is composed of upper and lower carbon steel body, rubber pipe sleeve, valve stem gate plate, upper and lower guide posts and other parts.

(2) Working Principle: When the handwheel is rotated forward, the large and small stem simultaneously drives the upper and lower stubble plates, compresses the sleeve and closes, otherwise opens. In this way, the valve is opened and closed from top to bottom reciprocally between the guide posts.

Application condition

In some cases with more sediment and debris (such as Yellow River water quality, sewage treatment system, etc.), the valve control pipeline is easy to be blocked, resulting in valve failure; large debris is also easy to lock the valve plate, resulting in valve seal is not strict; there are also some special conditions, valve switch when the water hammer is very large, resulting in valve switch when loud. Big and even cause accidents.

Main technical parameters

公稱通徑DN(mm)
適用溫度℃
適用介質
流阻系數
工作壓力(Mpa)
DN150-DN2000
0-80
泥污、污水
油品、海水
0.3-1.1
≥0.1
關閥時間(可調)
開閥時間(可調)
結構長度標準
法蘭標準
泄漏量
快關1-3秒
慢關5-90秒
20-60秒
GB2221-89
GB/T79-94
GB/T13927-92
主要零件材料
零件名稱
閥體
閥心
閥軸
密封面
填料
材料名稱
球墨鑄鐵
球墨鑄鐵
不銹鋼
丁腈橡膠
O型密封圈
碳鋼
碳鋼
不銹鐵
不銹鋼
不銹鋼

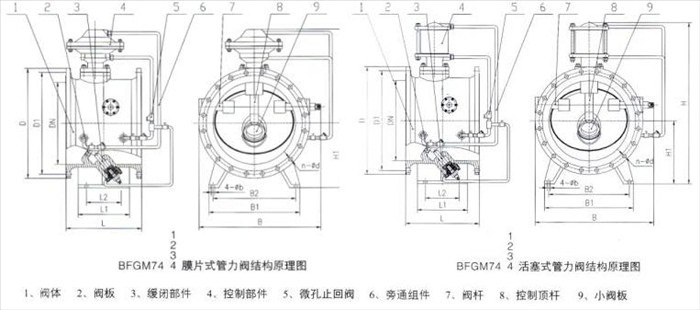

Main dimensions


公稱
通徑
長度
外形尺寸(參考值)
連接尺寸(標準值)
1.6 Mpa
2.5 Mpa
毫米
L
L1
L2
H
H1
B
B1
B2
n-b
D
D1
n-d
D
D1
n-d
200
190
520
355
340
295
12-22
360
310
12-26
250
250
580
420
405
355
12-26
425
370
12-30
300
270
710
490
460
410
12-26
485
430
16-30
350
290
770
560
520
470
16-26
555
490
16-33
400
406
830
625
580
525
16-30
620
550
16-36
450
432
870
685
640
585
20-30
670
600
20-36
500
457
930
720
715
650
20-33
730
660
20-36
600
508
1090
910
840
770
20-36
845
770
20-39
700
610
300
240
1260
520
1050
760
650
4-30
910
840
24-36
960
875
24-42
800
660
360
220
1440
600
1170
820
720
4-30
1025
950
24-39
1085
990
24-48
900
711
420
300
1535
650
1315
950
820
4-30
1125
1050
28-39
1185
1090
28-48
1000
811
460
350
1750
700
1460
1040
900
4-36
1255
1170
28-42
1320
1210
28-55
1200
850
500
410
1960
800
1580
1240
1070
4-36
1485
1390
32-48
1530
1420
32-55
1400
950
620
500
2250
900
1900
1400
1250
4-36
1685
1590
36-48
1755
1640
36-60
1600
1100
750
600
2500
1020
2100
1520
1300
4-36
1930
1820
40-55
1975
1860
40-60
1800
1200
850
680
2820
1150
2400
1620
1400
4-36
2130
2020
44-56
2195
2070
44-68
2000
1300
980
820
3150
1250
2750
1800
1550
4-48
2345
2230
48-60
2415
2280
48-68
