UFS steam-water separator is used in steam, compressed air and other gas systems to remove water content in steam, air or gas systems.


The water droplets separated from the steam separator are gathered along the inclined tube wall and discharged by a special drain outlet. Therefore, the steam-water separator can ensure the dryness of the steam used by the equipment, which is particularly important for improving equipment productivity and product quality, and can extend the service life of the equipment and its control valve. This product is a baffle separator for separating night droplets from steam, compressed air and gas systems. There are trapezoidal baffles in the valve and the separation efficiency is high. The insulation sleeve can improve the performance of the separator.


The separator is mounted on a horizontal pipe and the drainage outlet is downward. In order to ensure that the separated liquid is discharged as soon as possible, the drainage outlet should be connected with a suitable drainage valve or steam trap.

Main technical parameters


產(chǎn)品型號(hào)
公稱通徑DN
連接方式
使用壓力(Mpa)
MAX允許溫度(℃)
外型尺寸(mm)
L
H1
H2
D(法蘭)
UFS-16C
UFS-25C
25
法蘭
0.01~2.5
350
130
57
167
DN15
32
法蘭
0.01~2.5
350
210
70
195
DN15
40
法蘭
0.01~2.5
350
270
80
250
DN15
50
法蘭
0.01~2.5
350
270
80
250
DN25
65
法蘭
0.01~2.5
350
310
90
285
DN25
80
法蘭
0.01~2.5
350
400
98
330
DN25
100
法蘭
0.01~2.5
350
400
108
370
DN25
125
法蘭
0.01~2.5
350
400
122
370
DN32
150
法蘭
0.01~2.5
350
450
140
410
DN32
200
法蘭
0.01~2.5
350
450
168
435
DN32
250
法蘭
0.01~2.5
350
550
203
517
DN32
300
法蘭
0.01~2.5
350
600
260
570
DN32
350
法蘭
0.01~2.5
350
700
275
650
DN32
主體材質(zhì)
碳鋼WCB


(DN400以上或者壓力4.0Mpa以上需要定做)

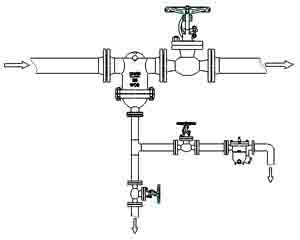

安裝示意圖
