GID-A electric high vacuum butterfly valve

GID-A electric high vacuum butterfly valve
  • sell：021-32051999
  • sell：021-32050777
  • fax：021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

GID-A Electric High Vacuum Butterfly Valve GID-A Series Electric High Vacuum Butterfly Valve adopts rotary type electric and electronic regulating valve driving device, which can realize the control of valve opening, closing or intermediate position by switching the external power supply (controlled by manual shift switch or computer) or external input signal, so as to turn on or off the true position. The purpose of air flow in ATC. The valve plate adopts clamping structure to clamp the sealing ring of the valve plate, which can be used not only in vacuum, but also in low pressure.

GID-A series electric high vacuum butterfly valves are suitable for working air and non corrosive gases.

Main technical performance

適用范圍(Pa)
2x105～1.3x10-5
閥門漏率(Pa.L/S)
≤1.3x10-6
開閉時間(S)
DN≤63 20；80≤DN≤200 30； DN≥250 48
介質溫度（℃）
-25～+80(密封材料為丁腈橡膠)
-30～+150(密封材料為氟橡膠)
法蘭標準
GB/T6070
安裝位置
任意
控制電路
標準出廠：AC220V/50Hz開關型
特殊指定：AC380V；DC24V開關型
4～20mA DC
信號反饋
標準出廠：帶無源觸點型
特殊指定：4～20mA DC調節型

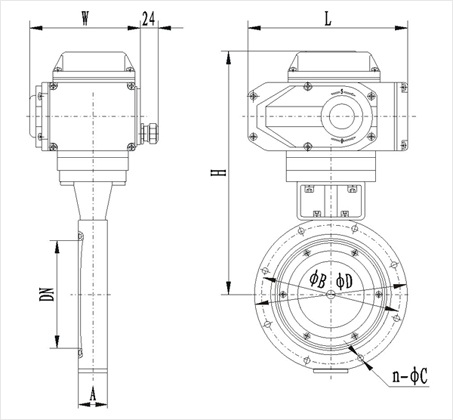

Main dimensions
型號
通徑(DN)
ΦD
ΦB
H
A
L
W
n-ΦC
GID-50A
50
110
90
218
26
160
113
4-Φ9
GID-63A
63
130
110
229
32
GID-80A
80
145
125
272
196
121
8-Φ9
GID-100A
100
165
145
282
8-Φ12
GID-125A
125
200
175
300
35
GID-150A
150
225
200
369
255
158
GID-200A
200
285
260
399
45
12-Φ11
GID-250A
250
335
310
427
50
GID-300A
300
425
395
471
55
12-Φ14
GID-400A
400
510
480
546
60
310
207
16-Φ14
