UZ41H plunger valve

UZ41H plunger valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

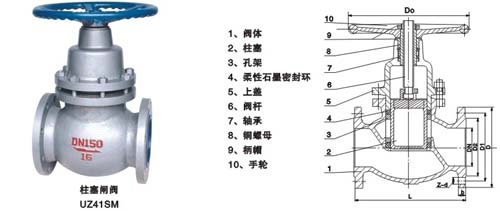

UZ41H plunger gate valve is composed of valve body, valve cover, valve stem, plunger, guide sleeve, sealing ring, hand wheel and other parts (as shown). When the handwheel rotates, the plunger is driven up and down in the guide sleeve by the valve stem to reciprocate, so that the oblique cone of the plunger end and the valve seat surface complete the opening and closing functions of the valve.

In the valve plunger and seal ring with interference fit, by adjusting the flange bolt pre-tightening force, so that the compression of the sealing ring produced by the lateral force and the body of the hole and plunger cylindrical seal so that high wear-resistant non-toxic new sealing material, so the seal is reliable, durable, thus improving the service life of the valve.

Plunger gate valve is designed and manufactured according to the original connecting dimension of gate valve. Because of leakage, poor sealing ring and short service life, the plunger gate valve combines the advantages of no leakage of plunger valve and the characteristics of quick opening and closing, high temperature and high pressure resistance, and becomes a new type of structure without leakage. Leaky plunger gate valve.

Performance specification

閥體材料
適用溫度
適用介質(zhì)
壓力范圍
鑄鋼
≤250℃
水、蒸汽、油品
PNl.6-4.0MPa
鑄鐵
≤180℃
水、蒸汽、油品
PNl.6
不銹鋼
≤200℃
硝酸、醋酸
通徑范圍
含鉬不銹鋼
≤200℃
氮、氫、尿素等
DNl5-400mm
Experimental pressure
實驗項目
實驗介質(zhì)
實驗壓力
壓強實驗
1.5PN
高壓密封試驗
1.1PN
低壓氣密封試驗
0.5-O.7MPa
Main dimensions
DN
尺寸(mm)
UZ41H-16C(Y、P、R)
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
400
L
130
150
160
180
240
250
265
280
300
325
350
400
450
500
550
600
W
100
100
120
140
160
180
200
240
270
310
340
400
520
640
760
900
D
95
105
115
135
145
160
180
195
215
245
280
335
405
460
520
580
K
65
75
85
100
110
125
145
160
180
210
240
295
355
410
470
525
D1
45
55
65
78
85
100
120
135
155
185
210
265
320
375
435
485
t
14
14
14
16
16
16
18
20
20
22
24
26
30
30
34
36
n-φ
4-14
4-14
4-14
4-18
4-18
4-18
4-18
8-18
8-18
8-18
8-23
8-23
12-23
12-25
16-25
16-30



DN
尺寸(mm)
UZ41H-25C(Y、P、R)
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
400
L
130
150
160
180
240
250
265
280
300
325
350
400
450
500
550
600
W
100
100
120
140
160
180
200
240
280
310
340
400
520
640
760
900
D
95
105
115
135
145
160
180
195
230
270
300
360
425
485
550
610
K
65
75
85
100
110
125
145
160
190
220
250
310
370
430
490
550
D1
45
55
65
78
85
100
120
135
160
188
218
278
332
390
448
505
t
16
16
16
18
18
20
22
22
24
28
30
34
36
40
44
48
n-φ
4-14
4-14
4-14
4-18
4-18
4-18
8-18
8-18
8-23
8-25
8-25
12-25
12-30
16-30
16-34
16-34



DN
尺寸(mm)
UZ41H-40C(Y、P、R)
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
400
L
130
150
160
180
200
250
265
280
300
325
350
400
450
500
550
600
W
100
100
120
140
160
180
200
240
280
310
340
400
520
640
760
900
D
95
105
115
135
145
160
180
195
230
270
300
375
445
510
570
655
K
65
75
85
100
110
125
145
160
190
220
250
320
385
450
510
585
D1
45
55
65
78
85
100
120
135
160
188
218
282
345
408
465
535
t
16
16
16
18
18
20
22
22
24
28
30
38
42
46
52
58
n-φ
4-14
4-14
4-14
4-18
4-18
4-18
8-18
8-18
8-12
8-26
8-26
12-30
12-33
16-33
16-36
16-39



DN
尺寸(mm)
UZ41H-64C(Y、R、P)
50
65
80
100
125
150
200
L
250
280
310
350
400
450
550
W
200
240
280
310
340
400
520
D
175
200
210
250
295
340
405
K
135
160
170
200
240
280
345
D1
105
130
140
168
202
240
300
t
26
28
30
32
36
38
44
n-φ
4-23
8-23
8-23
8-25
8-30
8-34
12-34



DN
尺寸(mm)
UZ41H-100C(Y、R、P)
50
65
80
100
125
150
200
L
250
280
310
350
400
450
550
W
200
240
280
310
340
400
520
D
195
220
230
285
310
350
430
K
145
170
180
210
250
290
360
D1
112
138
148
172
210
250
312
t
28
32
34
38
42
40
54
n-φ
4-25
8-25
8-23
8-30
8-34
12-34
12-41
