J61H/Y welding stop valve
- sell:021-32051999
- sell:021-32050777
- fax:021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
Welded globe valves are suitable for cutting off or switching on the pipelines of petroleum, chemical, hydraulic and thermal power plants with nominal pressure of PN10.0-32.0 Mpa and P (54) 100V-P (57) 170V and working temperature of<540 ((P (57) 170V) 570 (?) Suitable medium is water, oil, steam, etc. The ways of operation are manual, gear drive, electric and so on.
Structural features of welded globe valves
1. Product design and manufacture according to E101 and JB/T3595-93 standards, reasonable structure, good performance, beautiful shape.
2. the valve cavity adopts a pressure self tightening seal structure, and the sealing performance is better. The two ends of the branch pipe are welded structures. Welding groove can be matched according to standard or user requirements.
3. The sealing surface of disc and seat is made of Stellite cobalt-based cemented carbide surfacing, which is wear-resistant, high temperature-resistant, good abrasion resistance and long service life.
The 4. stem is quenched and tempered with surface nitriding. It has good corrosion resistance and abrasion resistance.
5. the depth of the gland cover is reasonable, the filler is corrosion inhibitor, and the sealing is reliable.
7. Electric globe valve is equipped with DZW series valve electric device, with small shell, light weight, full function, beautiful appearance and other characteristics, and can be used with the program-controlled computer, can also be selected according to user requirements electric device.
Standard Specification for welded globe valves
Design and manufacture: E101, JB/T3595-93
Pressure temperature: E101, JB/T3595
Structure length: E101
Butt welding joint size: GB/T15198.3-95
Inspection and experiment: GB/T13927-92
Main performance parameters of welded globe valves
產品型號 | 公稱壓力 | 試驗壓力 | 工作壓力 | 工作溫度(℃) | 適用介質 | |||
殼體強度 | 密封 | P54 | P55 | P57 | ||||
J61H/Y-100 | 10 | 15 | 11 | ≤450 | 水、蒸汽、油品 | |||
J61H/Y-200 | 20 | 30 | 22 | |||||
J61H/Y-250 | 25 | 38 | 28 | |||||
J61H/Y-320 | 32 | 48 | 36 | |||||
J61Y-P54/100V | 30 | 22 | 10 | ≤540 | 蒸 汽 | |||
J61Y-P54/140V | 38 | 28 | 14 | |||||
J61Y-P54/170V | 48 | 36 | 17 | 10 | ||||
J61Y-P55/100V | 38 | 28 | 14 | ≤555 | ||||
J61Y-P55/140V | 48 | 36 | 17 | |||||
J61Y-P55/170V | 53 | 39 | 10 | |||||
J61Y-P57/100V | 48 | 36 | 14 | ≤570 | ||||
J61Y-P57/140V | 55 | 40 | 17 | |||||
J61Y-P57/170V | 60 | 44 |
零件名稱 | 閥體 | 閥蓋 | 閥桿 | 閥瓣 | 密封面 | 填料 | 閥桿螺母 | 手輪 | 緊固體 |
J61H型 | 25 WCB | 25 40Cr | 鉻不銹鋼 鉻鉬鋁鋼化 | 鉻不銹鋼 | 鉻不銹鋼 | 柔性石墨 | 鋁青銅 | 可鍛鑄鐵 | 優良碳鋼鉬鋼 |
J61Y型 | 25 WCB | 25 40Cr | 鉻不銹鋼 鉻鉬鋁鋼化 | 25 | 硬質合金 | 柔性石墨 | 鋁青銅 | 可鍛鑄鐵 | 優良碳鋼鉻鉬鋼 |
J61Y-P54型 | ZG20CrMolV 12CrlMolV | 12C r1MolV | 20CrMol V 25CrlMolV | 12CrlMolV | 硬質合金 | 柔性石墨 | 鋁青銅 | 可鍛鑄鐵 | 鉻鉬鋼 |
J61Y-P55型 | ZG25CrMol V12CrlMolV | 12C r1MolV | 20CrMol V 25CrlMolV | 12C r1MolV | 硬質合金 | 柔性石墨 | 鋁青銅 | 可鍛鑄鐵 | 鉻鉬鋼 |
J61Y-P57型 | ZGl5CrMolV 12CrlMolV | 12CrlMolV | 20CrMol V25CrlMolV | 12CrlMolV | 硬質合金 | 柔性石墨 | 鋁青銅 | 可鍛鑄鐵 | 鉻鉬鋼 |

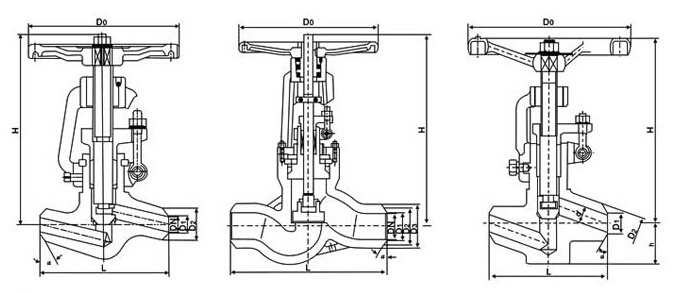

公稱通徑DN | 主要外形尺寸和連接尺寸 | 重量 | ||||||
L | D1 | D2 | D3 | α | H | D0 | ||
J61(H.Y)-25、40、64、100、200、250、320 J61Y-P54/100V、P54/140V、P54/170V | ||||||||
10 | 120 | 12 | 25 | 40° | 185 | 140 | 2.8 | |
15 | 170 | 17 | 36 | 40° | 247 | 200 | 7.5 | |
20 | 170 | 22 | 42 | 40° | 248 | 200 | 9 | |
25 | 170 | 26 | 42 | 40° | 248 | 240 | 9.5 | |
32 | 170 | 31 | 44 | 40° | 248.5 | 280 | 15 | |
50① | 250 | 50 | 82 | 32° | 450 | 320 | 60 | |
50② | 350 | 50 | 82 | 32° | 450 | 320 | 64 | |
65 | 430 | 69 | 100 | 110 | 32° | 669 | 400 | 74 |
80 | 470 | 84 | 108 | 130 | 32° | 669 | 450 | 112.5 |
100 | 560 | 107 | 144 | 165 | 32° | 755 | 500 | 178.5 |
注:DN50為兩種型號。 | ||||||||
J61Y-P55/100V、P55/140V、P55/170V J61Y-P57/100V、P57/140V、P57/170V | ||||||||
10 | 120 | 12 | 28 | 40° | 189 | 140 | 3 | |
15 | 170 | 17 | 40 | 40° | 250 | 200 | 9 | |
20 | 170 | 22 | 46 | 40° | 252 | 200 | 11 | |
25 | 170 | 26 | 46 | 40° | 254 | 240 | 13 | |
32 | 170 | 31 | 49 | 40° | 254 | 280 | 17 | |
50① | 250 | 50 | 90 | 32° | 453 | 320 | 68 | |
50② | 350 | 50 | 90 | 32° | 455 | 320 | 72 | |
65 | 430 | 69 | 104 | 115 | 32° | 630 | 400 | 83 |
80 | 470 | 84 | 110 | 140 | 32° | 672 | 450 | 118 |
100 | 560 | 17 | 148 | 170 | 32° | 761 | 500 | 165 |
