DS/J61H-25, DS/J61H-40, DS/J61H-63 type water seal globe valves are suitable for cutting off or connecting the medium in the pipeline of the return water condensing system of thermal power plants with nominal pressure PN2.5-6.4 MPa and working temperature 0-450 C and the system pipeline of petroleum and chemical requirements and air isolation.


Product features of water seal globe valves


1, the product is designed and manufactured according to the national standard GB12235, with novel structure, reasonable material selection and beautiful appearance. The connection ends are flanged and welded, and can be configured according to the different requirements of users.


2. The packing box is designed as a water-sealed structure with 0.6-1.6 Mpa water filler. It has small friction and good sealing. It can isolate the whole system from the atmosphere and ensure good air tightness.


3. The valve stem is quenched and tempered and nitriding on surface. It has good corrosiveness and abrasion resistance.


4. Compact structure, flexible operation, convenient maintenance and long service life.


5. Inverted seal is made of stainless steel thread connection seal seat or body surfacing austenitic stainless steel, and the inverted seal is reliable. Packing replacement and maintenance can be carried out without stopping. It is convenient and quick, and does not affect the operation of the system.


Water seal globe valve standard


Design and manufacture: JB/T3595


Structure length: GB/T15188.1


Pressure temperature class: GB/T3595


Test and inspection: GB13927 JB/T9092


Performance parameters of water seal globe valves


型號
DS/J61H-25
DS/J61H-40
DS/J61H-63
工作壓力（MPa）
2.5
4.0
6.3
適用溫度（℃）
≤425
適用介質(zhì)
水、蒸汽、油品、非腐蝕性氣體
材料
閥桿
1Cr13或2Cr13
閥體、閥蓋、支架
WCB25
閘板、閥瓣、密封面
Cr13型不銹鋼或硬質(zhì)合金
閥座密封面
不銹鋼
閥桿螺母
鋁青銅
填料
柔性石墨

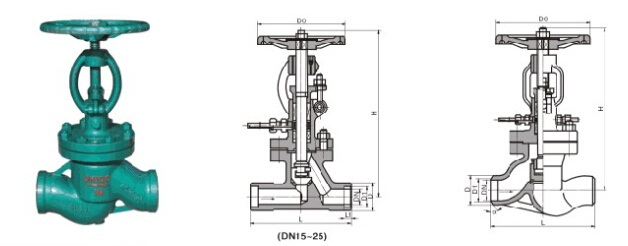

Main dimensions of water seal globe valves


公稱通徑
主要外形尺寸和連接尺寸
L
D
D1
H
D0
DS/J61H-25
15
130
36
19
11
120
20
150
44
26
11
140
25
160
44
33
12
140
32
180
48
34
-
180
40
200
55
40
-
200
50
230
64
50
-
250
65
290
82
65
-
250
80
310
94
78
-
300
100
350
117
97
-
350
125
400
144
122
-
400
150
480
170
148
-
400
200
600
220
197
-
400
DS/J61H-40
15
13
38
19
-
120
20
150
47
26
-
140
25
160
47
33
-
160
32
180
53
34
-
160
40
200
57
40
-
200
50
230
68
50
-
250
65
290
85
65
-
280
80
310
98
78
-
320
100
350
122
97
-
350
125
400
148
122
-
400
150
480
176
148
-
400
