Types J41F4-16 and J41F46-16 fluorine-lined globe valves are suitable for Aqua regia, fluoric acid, hydrofluoric acid, hydrofluoric acid and various organic acids, strong acids and strong oxidants at - 50 ~ 150 C. They are also suitable for use in various concentrations of strong alkali organic solvents and other corrosive gases, liquid media pipelines.


Standard of execution


Design specification: GB/T 12233 GB/T 12235


Structure length: GB/T 12221


Connection flange: JB/T 78 JB/T 79


Test and inspection: GB/T 13927


Product identification: GB/T 12220


Supply specification: JB/T 7928


Specification for performance of fluorine stop valves


襯里、閥座
適用溫度(℃)
適用介質(zhì)
PTFE(F4)
≤180
除熔融堿金屬、元素氟外的各種濃度的酸、堿、鹽、王水、有機酸等強腐蝕性介質(zhì)
PCTFE(F3)
≤120
FEP(F46)
≤150
PFA(可熔性F4)
≤180
PVDF(F2)
≤100
RPTFE(RF4)
≤180

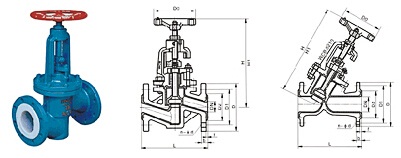

Main dimensions of fluorine stop valves
規(guī)格
L
D
D1
D2
f
b
n-d
D0
H
H1
DN
NPS
1.0MPa
15
90
95
65
45
2
14
4-14
100
240
265

20
95
105
75
55
2
16
4-14
100
245
270

25
1
100
115
85
65
2
16
4-14
120
250
275
32
1
105
135
100
78
2
18
4-18
120
260
290
40
1
115
145
110
85
3
18
4-18
140
290
325
50
2
125
160
125
100
3
20
4-18
140
300
335
65
2
145
180
145
120
3
20
4-18
160
355
400
80
3
155
195
160
135
3
22
4-18
160
400
450
100
4
175
215
180
155
3
22
8-18
180
455
495
125
5
200
245
210
185
3
24
8-18
180
530
560
150
6
225
280
240
210
3
24
8-23
240
605
650
200
8
275
335
295
265
3
26
8-23
240
650
770
250
10
325
390
350
320
3
28
12-23
280
680
800
300
12
375
440
400
368
4
28
12-23
280
710
835
1.6MPa
15
90
95
65
45
2
14
4-14
100
240
265

20
95
105
75
55
2
16
4-14
100
245
270

25
1
100
115
85
65
2
16
4-14
120
250
275
32
1
105
135
100
78
2
18
4-18
140
260
290
40
1
115
145
110
85
3
18
4-18
140
290
325
50
2
125
160
125
100
3
20
4-18
160
300
335
65
2
145
180
145
120
3
20
4-18
180
355
400
80
3
155
195
160
135
3
22
8-18
240
400
450
100
4
175
215
180
155
3
24
8-18
240
455
495
125
5
200
245
210
185
3
26
8-18
280
530
560
150
6
225
280
240
210
3
28
8-23
320
605
650
200
8
275
335
295
265
3
30
8-23
360
650
770
2.5MPa
15
90
95
65
45
2
16
4-14
120
245
270

20
95
105
75
55
2
16
4-14
120
250
275

25
1
100
115
85
65
2
16
4-14
140
260
290
32
1
105
135
100
78
2
18
4-18
140
290
325
40
1
115
145
110
85
3
18
4-18
160
300
335
50
2
125
160
125
100
3
20
4-18
180
355
400
